MS 3.5 Laser Welder 165J
LW165J
$15,855.00

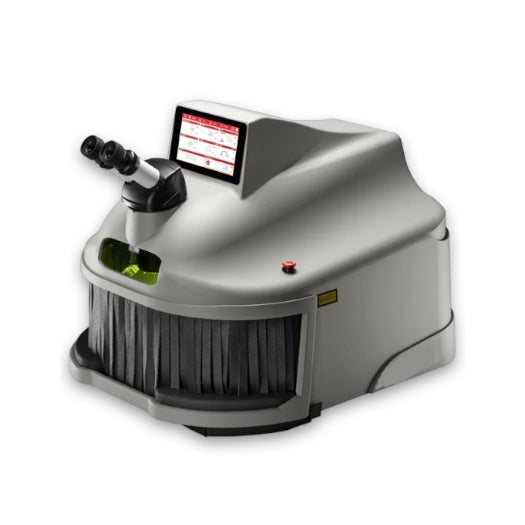

The Elettrolaser MS 3.5 Laser Welder 165J is a professional benchtop laser welding system designed for precision jewelry repair, watchmaking, fabrication, and other detailed metalworking applications.
As the highest-energy configuration in the MS 3.5 series, this model delivers 75 W average power, 6.5 kWp peak power, and up to 165 J of energy. A 7-inch color touchscreen, internal joystick control, motorized spot adjustment, and 100 stored memory settings give professional users precise control over repeatable welding operations.
MS 3.5 165J Laser Welder Key Features
- 165 J Maximum Energy: Provides substantial welding capability for professional jewelry repair, fabrication, restoration, and precision metalwork.
- 75 W Average Power: Designed for demanding workshop applications that require consistent laser performance.
- 6.5 kWp Peak Power: Delivers concentrated energy for controlled and localized welding.
- Motorized Spot Adjustment: Adjust the laser spot diameter from 0.2 to 2.0 mm to match different materials and welding tasks.
- 6 Preset Pulse Shapes: Provides additional control over laser energy delivery for different applications.
- 7-Inch Color Touchscreen: Offers direct and intuitive access to welding parameters.
- Internal Joystick Control: Allows parameter adjustments while working inside the welding chamber.
- 10x Microscope: Provides magnified viewing for accurate positioning and detailed welding work.
- 100 Memory Cells: Save commonly used welding settings for faster setup and repeatable results.
- Argon Nozzle: Supports shielding gas use when required by the material or welding process.
- Compact Desktop Design: Provides professional welding capability without requiring the footprint of a larger industrial system.
Professional Jewelry Repair and Fabrication
The MS 3.5 is designed for applications where accurate, localized welding is important. It is suitable for jewelry workshops, watch repair operations, dental laboratories, and professional metalworking environments handling precious metals and compatible alloys.
Typical applications include:
- Gold, silver, platinum, and palladium jewelry repair
- Ring and bracelet repair
- Jewelry restoration
- Repair work around mounted gemstones
- Filling porosity and small casting defects
- Fine jewelry fabrication and assembly
- Watch and small metal component repair
- Welding steel, cobalt-chrome, titanium, and compatible alloys
- Repetitive professional workshop welding
MS 3.5 165J Technical Specifications
| Model | MS 3.5 165 |
| Laser Source and Wavelength | Nd:Ce:YAG, 1064 nm |
| Average Power | 75 W |
| Peak Power | 6.5 kWp |
| Maximum Energy | 165 J |
| Impulse Time | 0.1–25 ms |
| Pulse Frequency | 0.5–30 Hz |
| Spot Diameter | 0.2–2.0 mm |
| Spot Setting | Motorized |
| Wave Programs | 6 preset pulse shapes |
| Stored Memory Cells | 100 |
| Internal Chamber Control | Joystick |
| External Control | 7-inch color touchscreen |
| Microscope | 10x |
| Argon Nozzle | Yes |
| Power Supply | 230 V AC, 50/60 Hz, 2.2 kW; 110 V available on request |
| Type | Desktop |
| Dimensions | 55 × 71.5 × 55 cm / 21.7 × 28.1 × 21.7 in |
| Weight | 35 kg / 77.2 lb |
Technical Documentation: View the MS 3.5 165J Technical Specifications (PDF) .
Precision Control for Professional Workshop Use
The MS 3.5 combines professional laser welding capability with a compact benchtop design. Adjustable laser parameters and stored memory settings make it suitable for both individual repair jobs and repetitive operations where consistency matters.
For workshops that require greater maximum welding energy and power, compare this model with the Master 4.0 Laser Welder 225J.
Browse more jewelry soldering and welding equipment available from SEP Tools.
