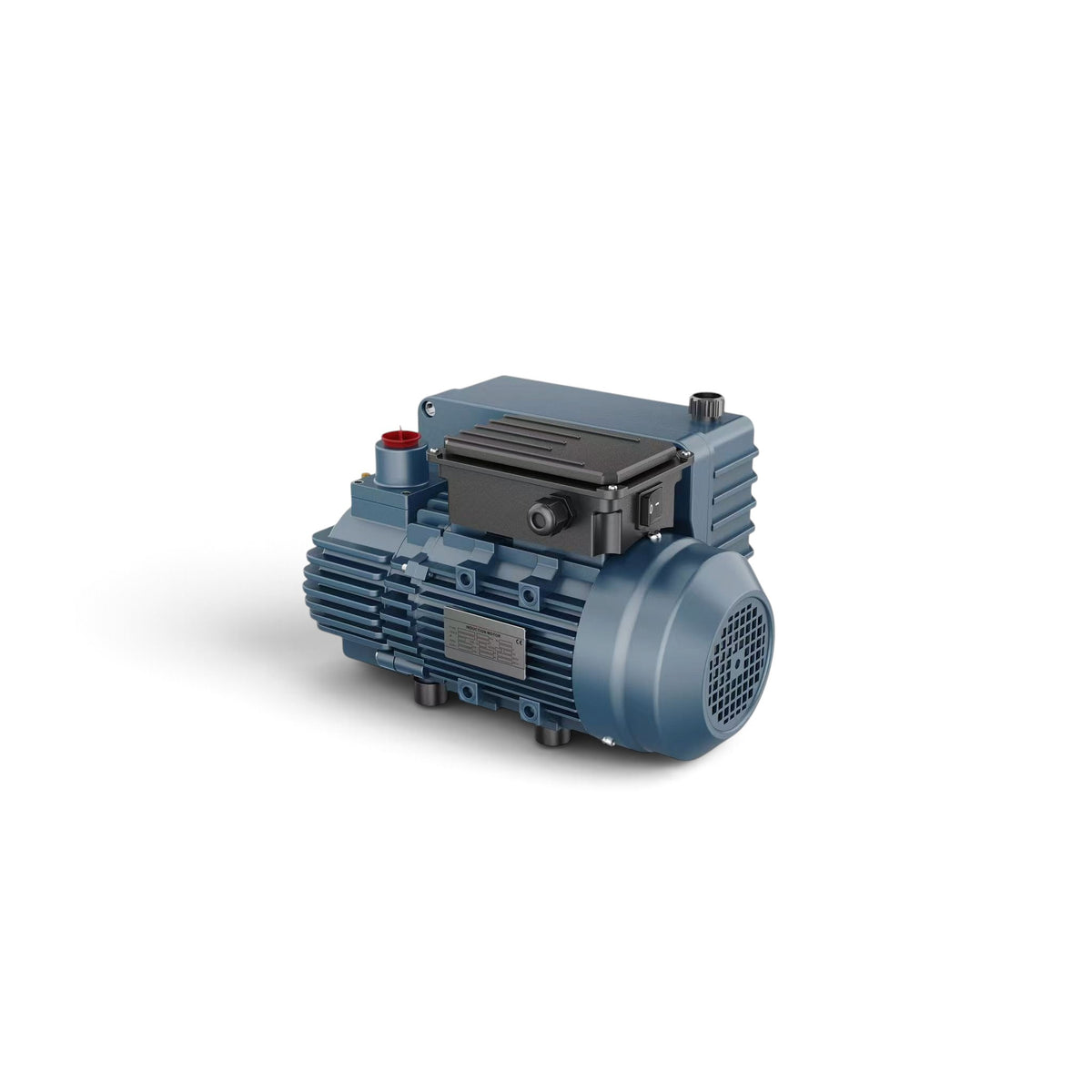

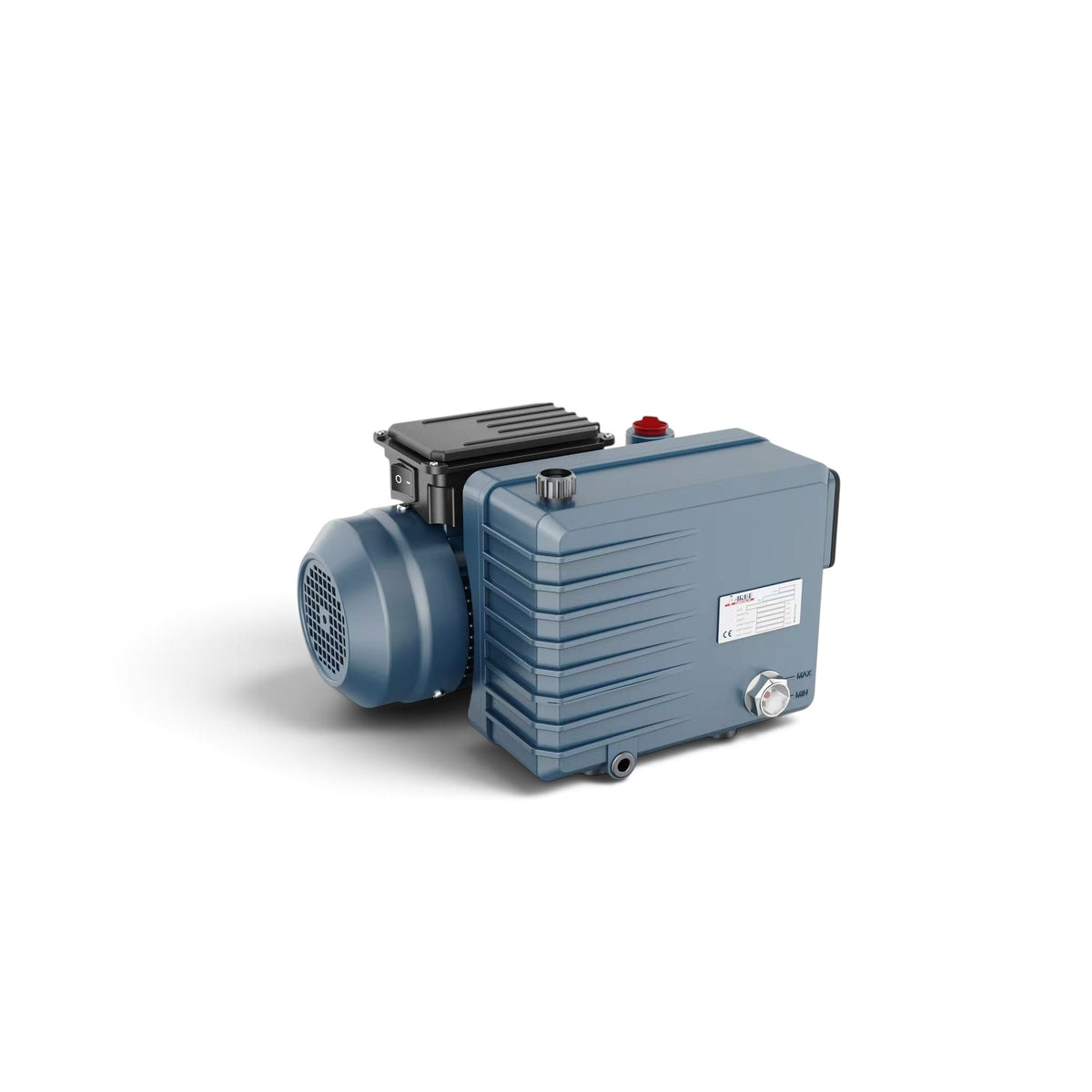

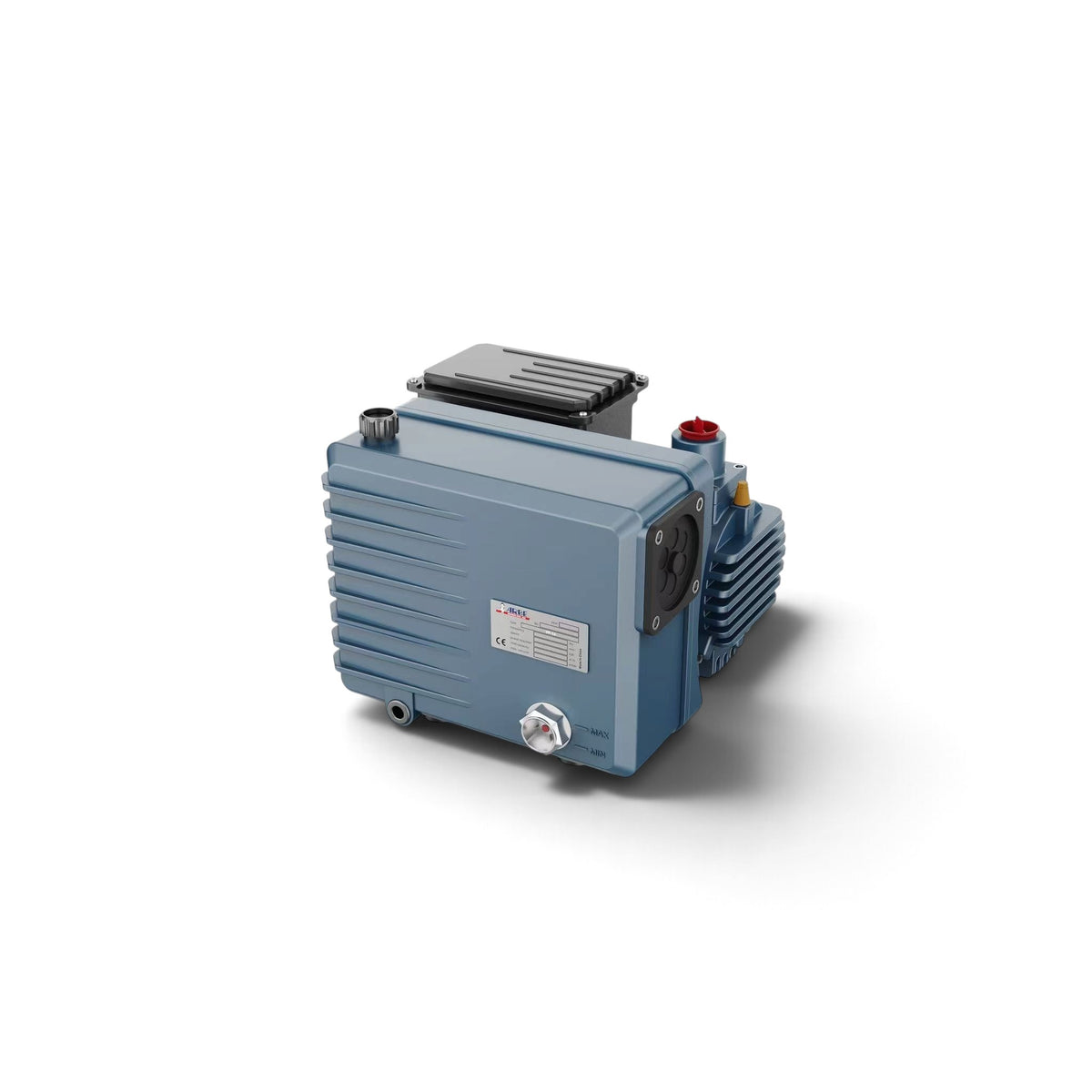

Arbe 14 CFM Vacuum Pump

Name: Arbe 14 CFM Vacuum Pump
Brand: Arbe Mfg.
SKU: ARBE-VP-14
Price: 2799.00 USD
Availability: InStock

ARBE-VP-14

Regular price ~~$2,999.00~~ Sale price $2,799.00 Save 6%

Questions? Call 312-541-4554

Features:

CFM: 14

Horsepower: 1

Voltage: 220 volts/ 60 Hz/ 1 phase

Parameter	Unit	ISO 50 Hz	ISO 60 Hz
Pumping speed	m³/h	20	24
	L/s	5.5	6.6
	SCFM	11.7	14.1
Ultimate pressure	mbar	1	1
	Pa	100	100
	torr	0.75	0.75
	inHg	0.029	0.029
Motor power	kW	0.75	0.9
	hp	1	1
Rated voltage	3ph	Δ 200–230 V / Y 380–415 V	Δ 200–230 V / Y 380–415 V
	1ph	220 V ±10%	220 V ±10%
Rated speed	rpm	2880	3440
Sound pressure level	dB(A)	65	65
Ingress protection	IP	54	54
Gas inlet	inch	G ½	G ½
Gas outlet	inch	G ¾	G ¾
Steam treatment capacity	kg/h	0.4	0.4
Oil capacity	L	0.45	0.45
Weight approx.	kg	19.5	19.5
Dimensions (L × W × H)	mm	317 × 249 × 219	317 × 249 × 219

Regular price ~~$2,999.00~~ Sale price $2,799.00
