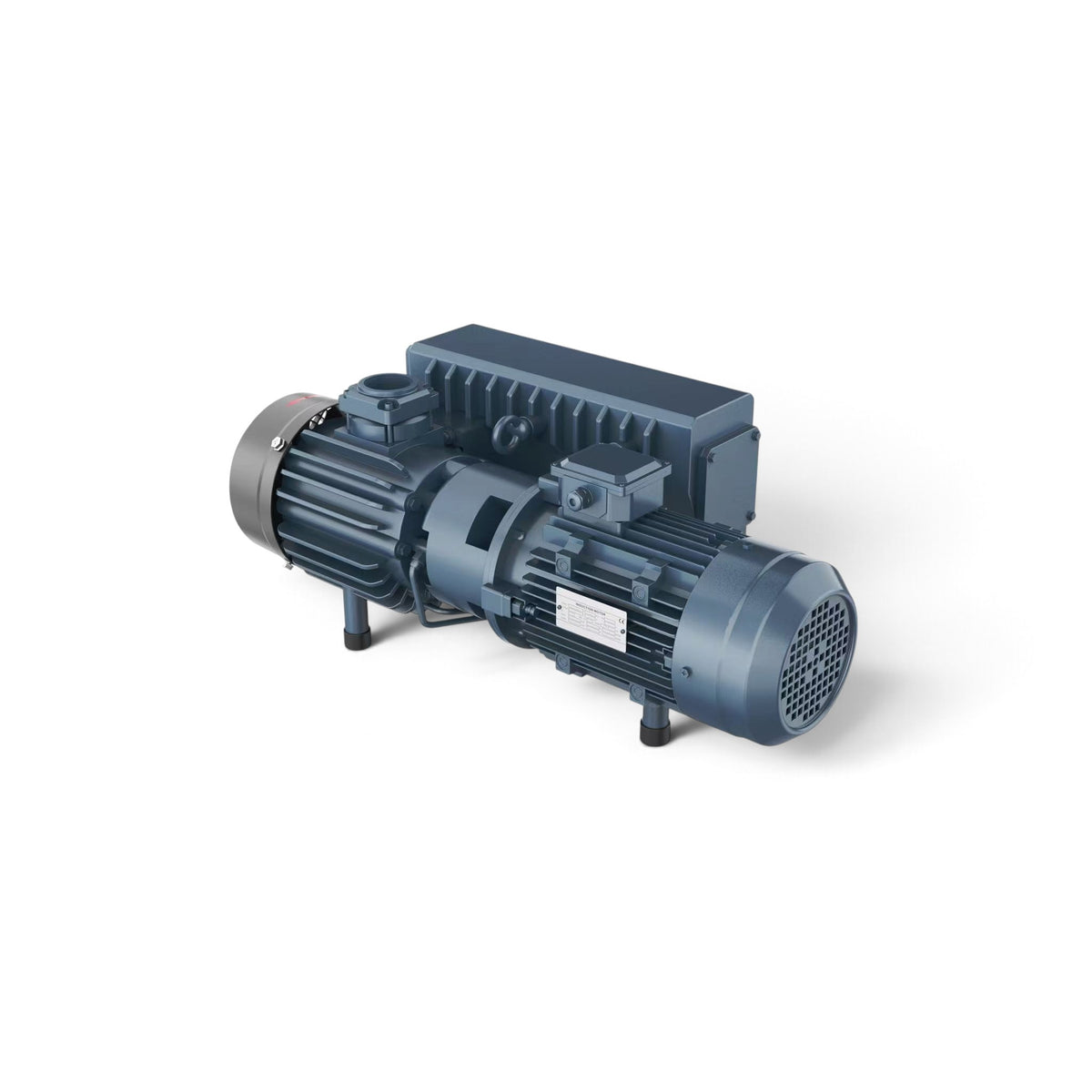

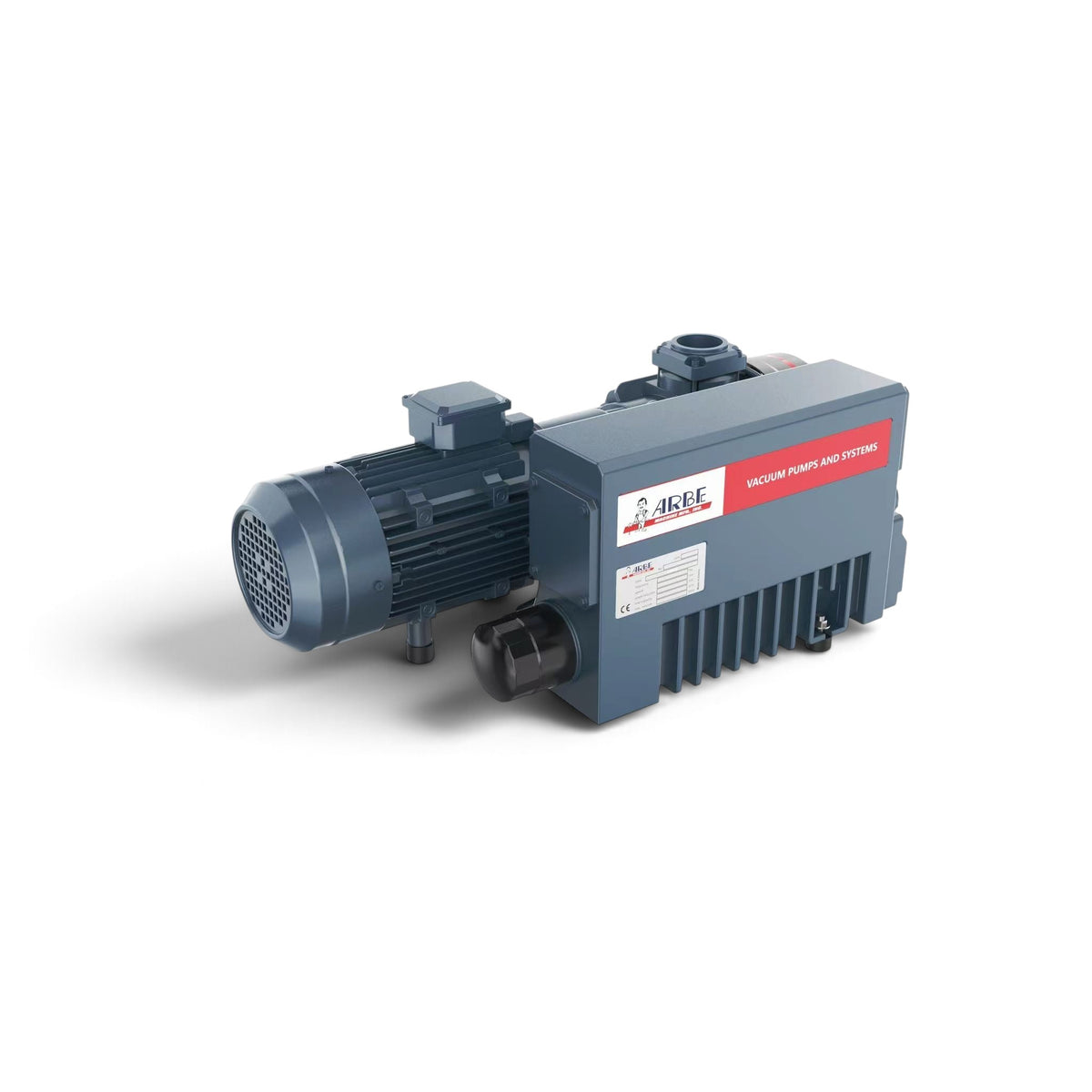

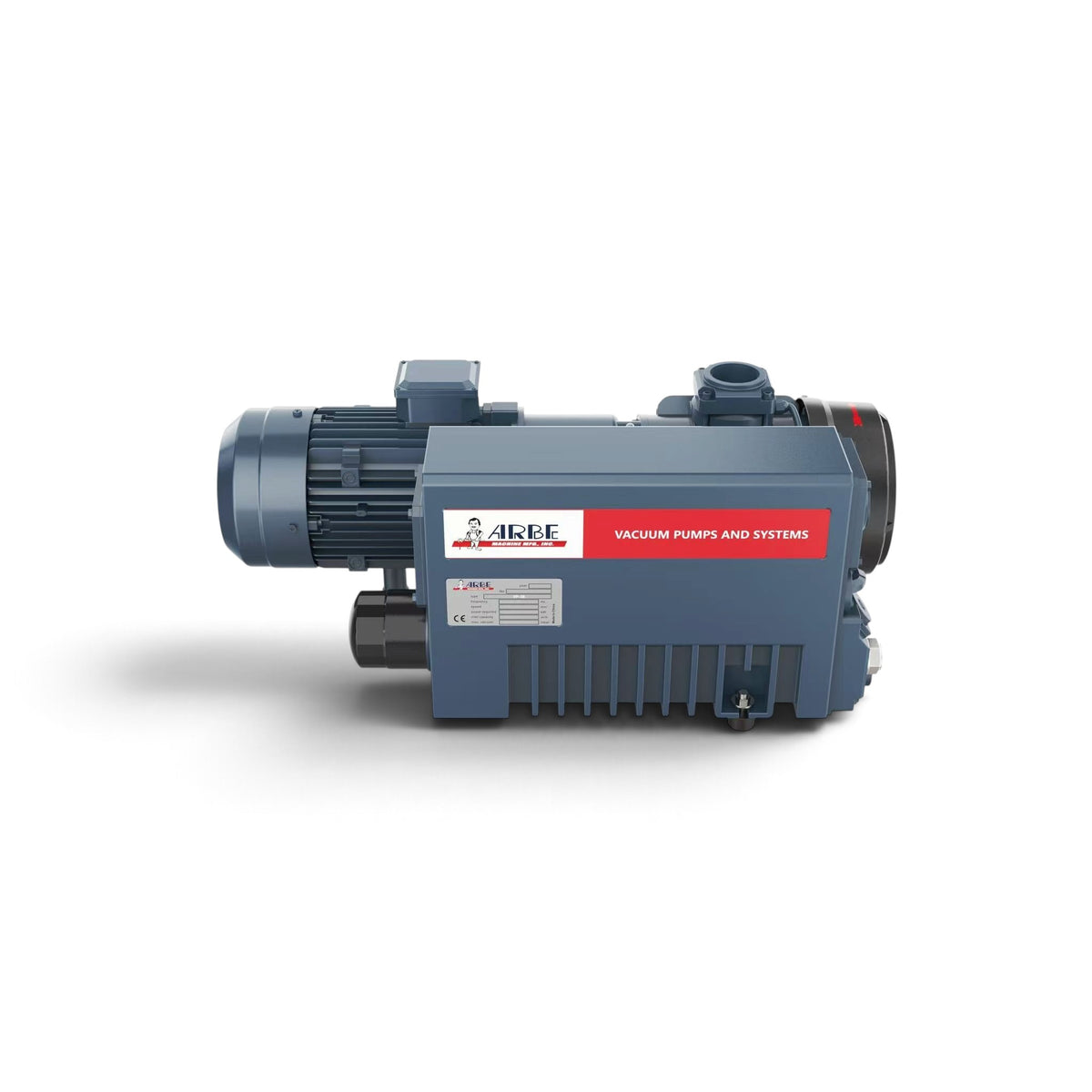

Arbe 28 CFM Vacuum Pump
ARBE-VP-28
Regular price
$3,499.00
Sale price
$3,299.00
Save 5%
Questions? Call 312-541-4554
Features:
CFM: 28
Horsepower: 2
Voltage: 220 volts/ 60 Hz/ 1 phase
Parameter Table — VP-28
|
Parameter |
Unit |
ISO 50 Hz |
ISO 60 Hz |
|---|---|---|---|
|
Pumping speed |
m³/h |
40 |
48 |
|
L/s |
11.1 |
13.3 |
|
|
SCFM |
23.5 |
28.2 |
|
|
Ultimate pressure |
mbar |
0.5 |
0.5 |
|
Pa |
50 |
50 |
|
|
torr |
0.375 |
0.375 |
|
|
inHg |
0.014 |
0.014 |
|
|
Motor power |
kW |
1.1 |
1.5 |
|
hp |
1.5 |
2 |
|
|
Rated voltage |
3ph |
Δ 200–230 V / Y 380–415 V |
Y 440–460 V |
|
1ph |
220 V ±10% |
220 V ±10% |
|
|
Rated speed |
rpm |
1450 |
1700 |
|
Sound pressure level |
dB(A) |
64 |
65 |
|
Ingress protection |
IP |
55 |
55 |
|
Gas inlet |
inch |
G 1¼″ |
G 1¼″ |
|
Gas outlet |
inch |
G 1¼″ |
G 1¼″ |
|
Steam treatment capacity |
kg/h |
0.7 |
0.7 |
|
Oil capacity |
L |
1.5 |
1.5 |
|
Weight approx. |
kg |
44 |
46 |
|
Dimensions (L × W × H) |
mm |
647 × 307 × 270 |
672 × 307 × 270 |
