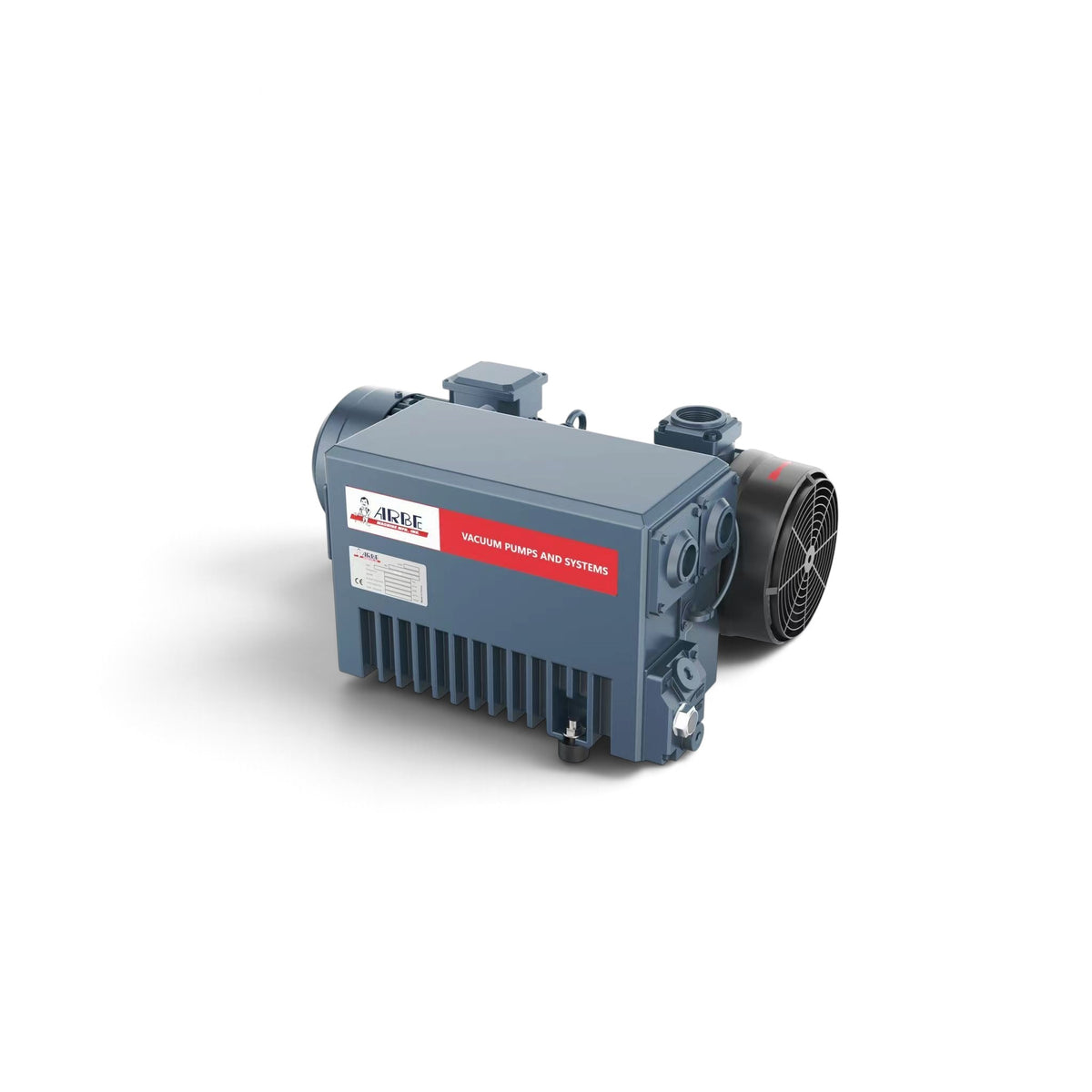

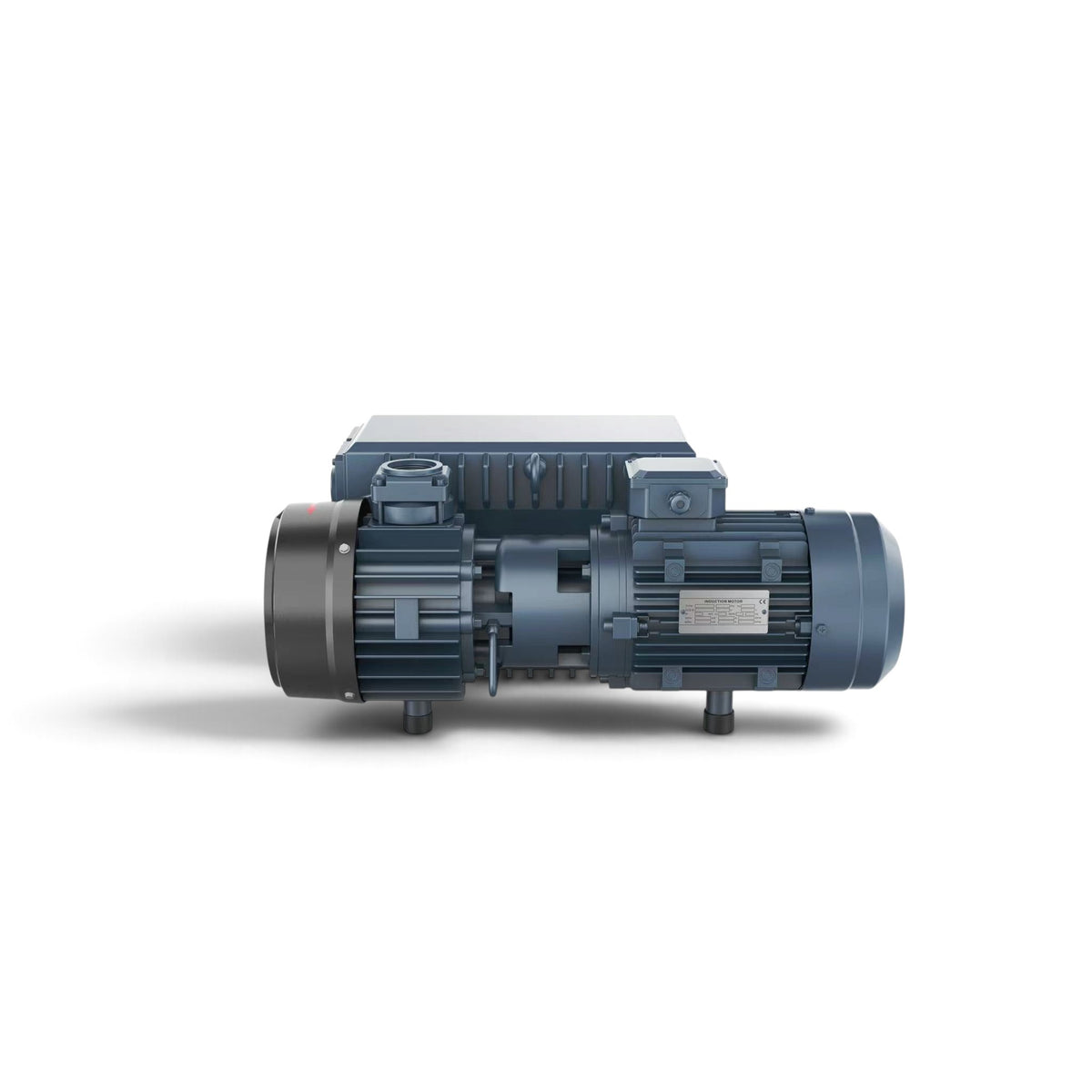

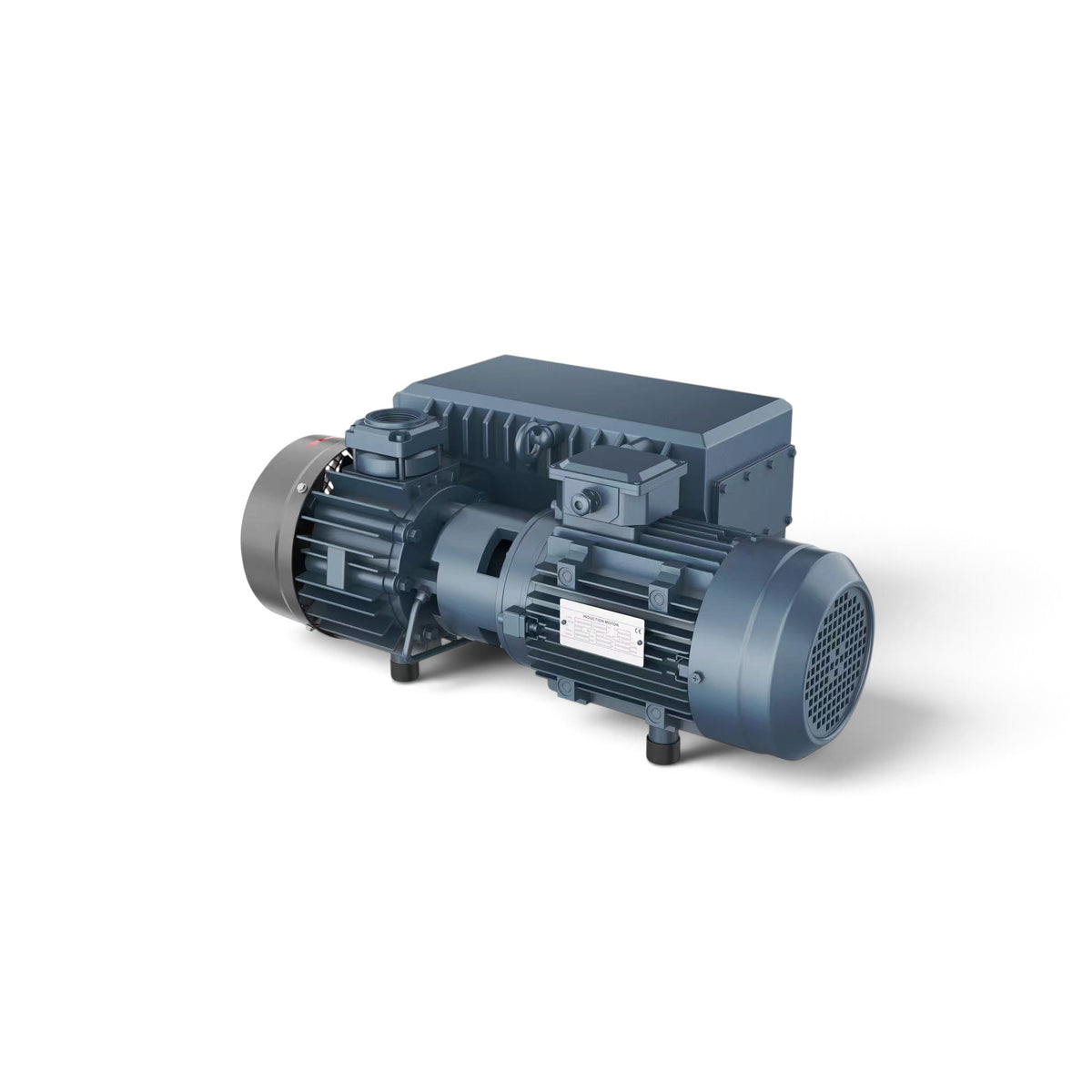

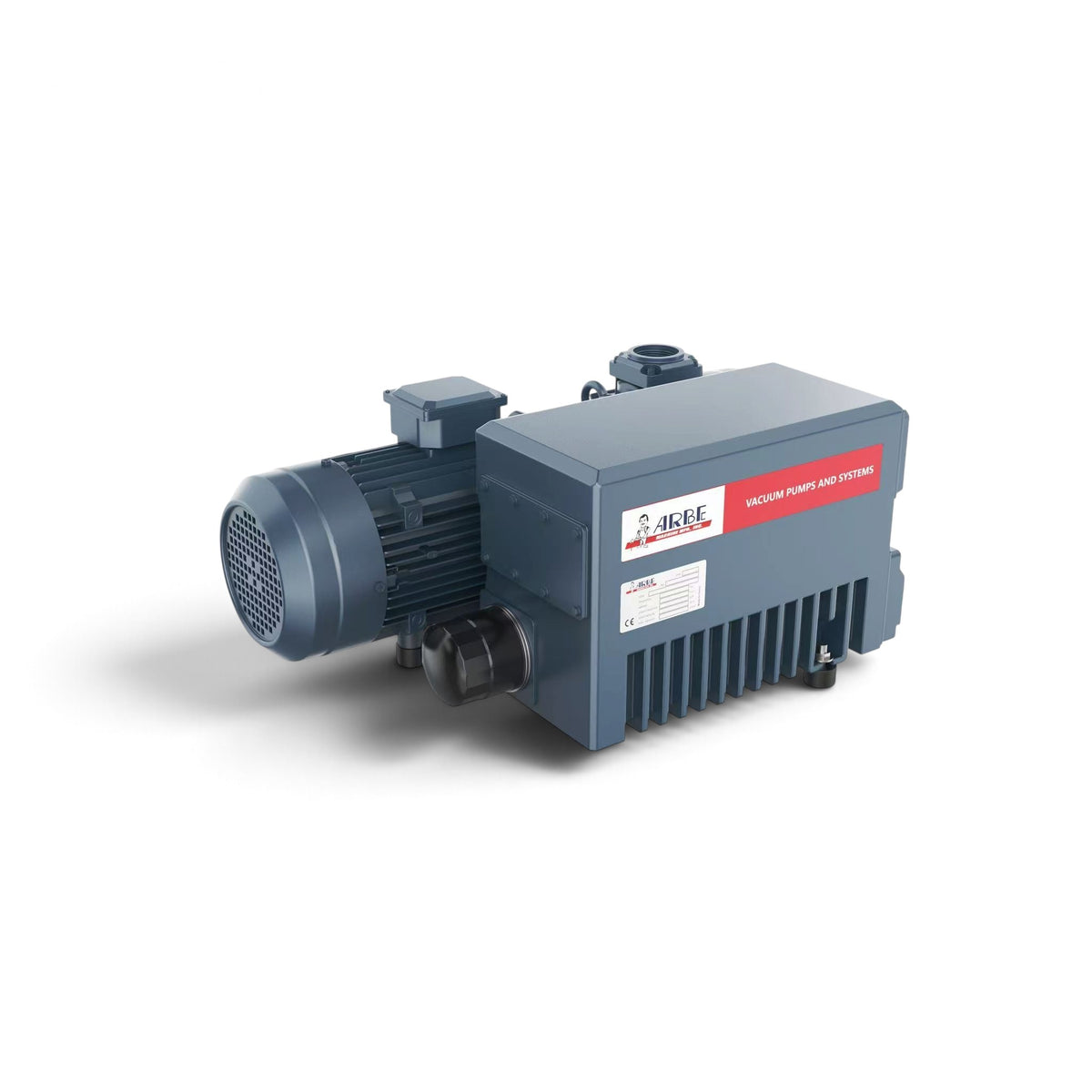

Arbe 45 CFM Vacuum Pump
ARBE-VP-45
Regular price
$4,499.00
Sale price
$4,199.00
Save 6%
Questions? Call 312-541-4554
Features:
CFM: 45
Horsepower: 3
Voltage: 220 volts/ 60 Hz/ 3 phase
Parameter Table — VP-45
|
Parameter |
Unit |
ISO 50 Hz |
ISO 60 Hz |
|---|---|---|---|
|
Pumping speed |
m³/h |
63 |
78 |
|
L/s |
17.5 |
21.6 |
|
|
SCFM |
37 |
45.9 |
|
|
Ultimate pressure |
mbar |
0.5 |
0.5 |
|
Pa |
50 |
50 |
|
|
torr |
0.375 |
0.375 |
|
|
inHg |
0.014 |
0.014 |
|
|
Motor power |
kW |
1.5 |
2.2 |
|
hp |
2 |
3 |
|
|
Rated voltage |
3ph |
Δ 200–230 V / Y 380–415 V |
Y 440–460 V |
|
Rated speed |
rpm |
1450 |
1700 |
|
Sound pressure level |
dB(A) |
65 |
66 |
|
Ingress protection |
IP |
55 |
55 |
|
Gas inlet |
inch |
G 1¼″ |
G 1¼″ |
|
Gas outlet |
inch |
G 1¼″ |
G 1¼″ |
|
Steam treatment capacity |
kg/h |
1 |
1 |
|
Oil capacity |
L |
2 |
2 |
|
Weight approx. |
kg |
64 |
59 |
|
Dimensions (L × W × H) |
mm |
640 × 405 × 290 |
640 × 405 × 290 |
