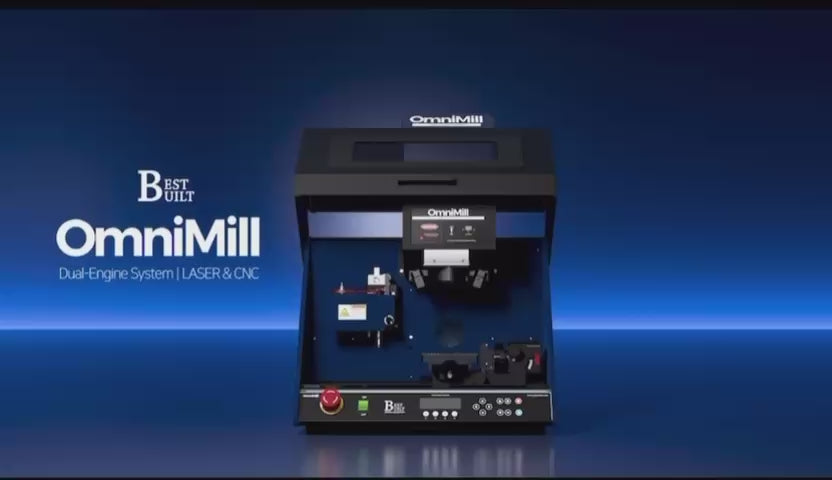

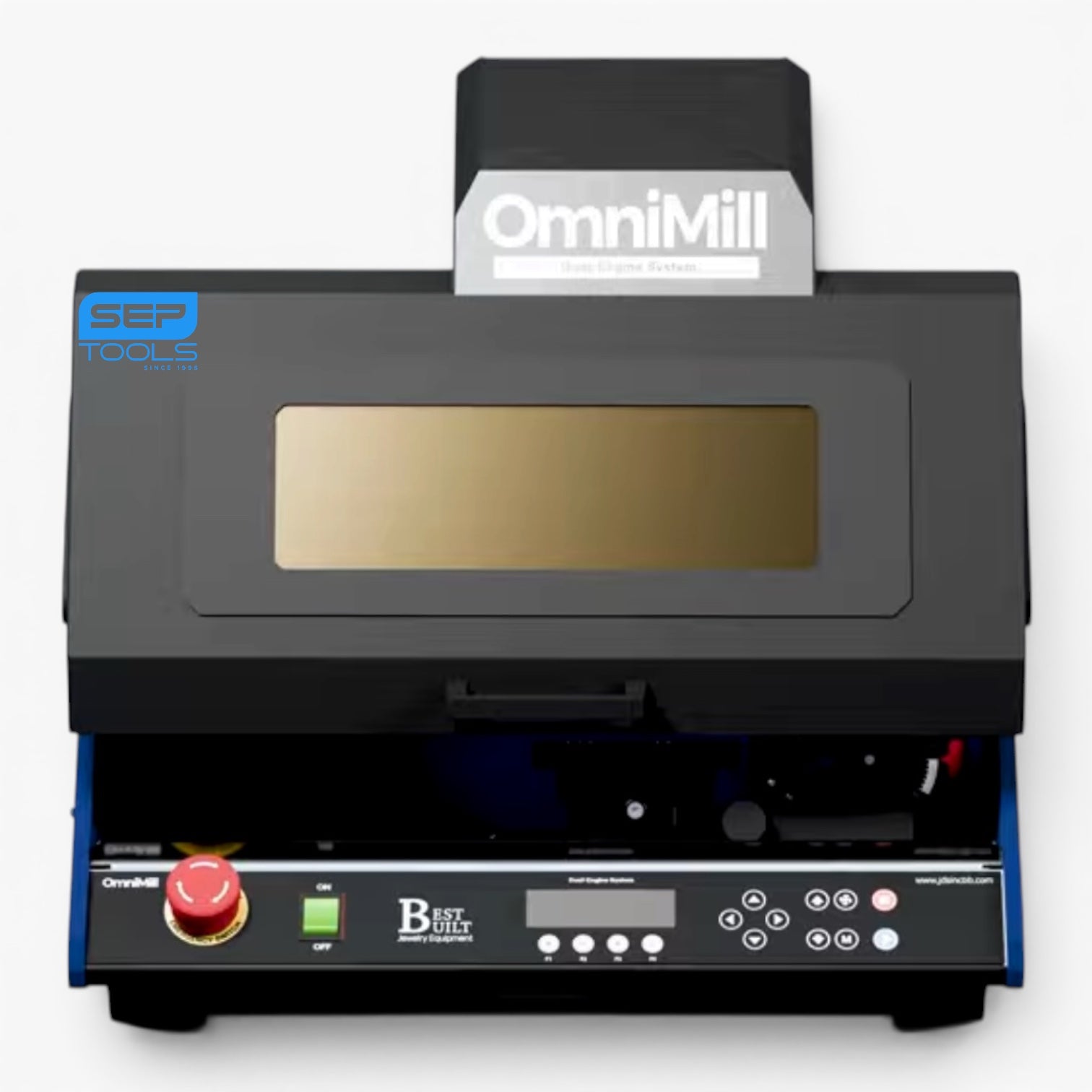

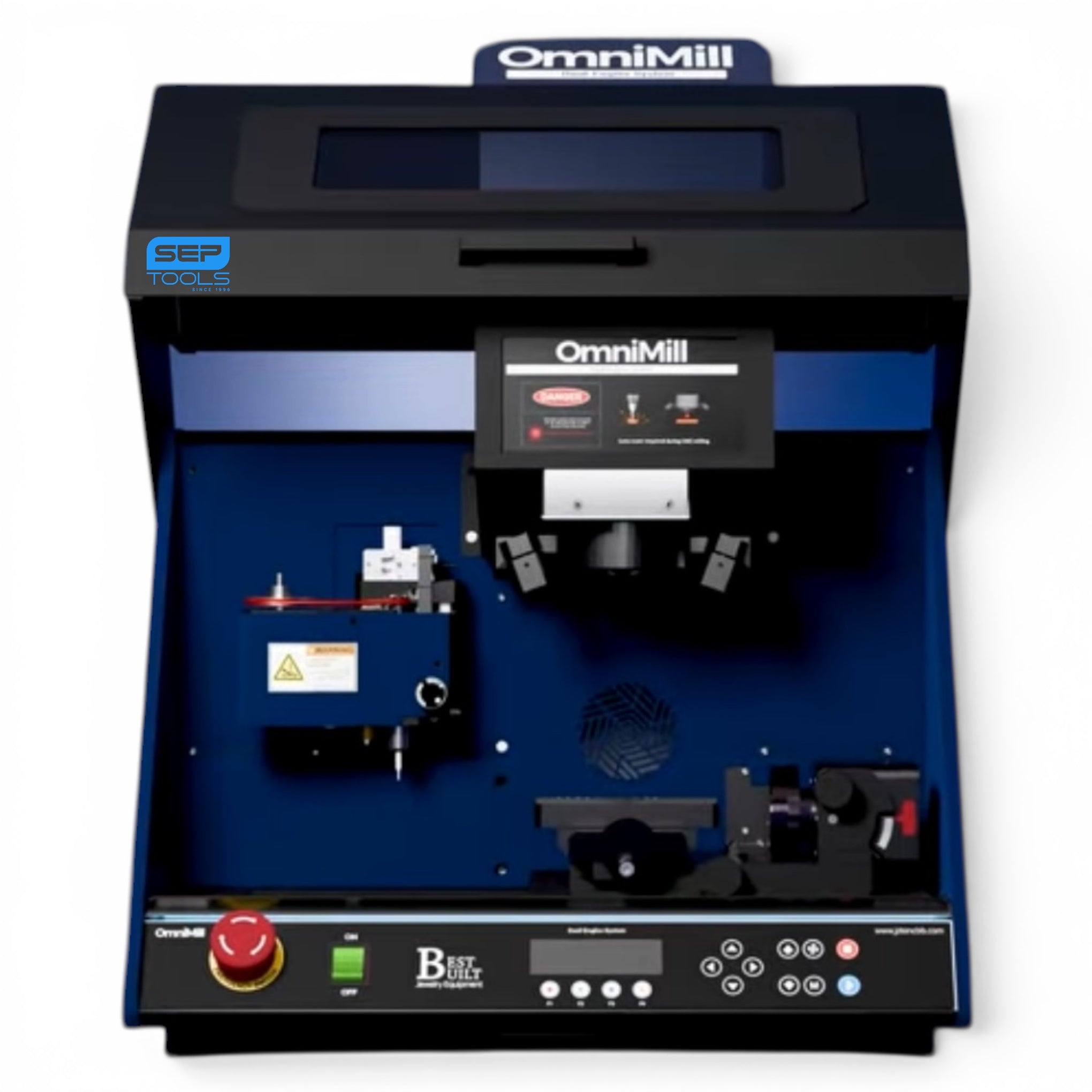

BB-OmniMill Hybrid CNC Engraving & Laser Marking in One System

OmniMill delivers unlimited creative freedom through a dual-engine CNC + laser system, providing total control with
MagicEngraveTM software while achieving true cost efficiency by integrating two professional technologies into a single
machine.

Unlimited Creative Freedom
MagicEngraveTM - One Software, Total Control
True Cost Efficiency

- Supports CNC scribing and endmill machining
- Supports laser marking and laser cutting
- Ring outer & inner engraving supported(Inner diameter engraving with manual angle adjustment)
- Pen engraving supported
- Compatible with pendant clamp, anti-curling clamp, tailstock, and CNC cutting clamp
- Auto positioning via built-in camera
- Auto focus via probe-based system
- Multipurpose Detachable Clamp System.

Unlimited Creative Freedom
Use CNC engraving and laser marking in a single machine. Without
being restricted by a single workflow, you can freely create a wide
range of jewelry designs with greater flexibility and creativity.

MagicEngraveTM - One Software, Total Control

A dedicated software developed specifically for jewelry applica-
tions. Easily operate both CNC and laser processes from one unified

screen for intuitive and efficient control.
Less setup. Faster production. An easy-to-use workspace that lets
you control both CNC and laser operations from one interface,
streamlining tool setup and toolpath generation.

True Cost Efficiency
No need to purchase CNC and laser machines separately. With
one system, you can reduce both equipment investment and
workspace requirements at the same time.

Built-in Rotary System
A fully integrated rotary engraving and machining system comes
standard with the machine, eliminating the need for additional
options or external attachments.
Enables inner and outer diameter engraving on cylindrical objects
such as rings, bangles, pens, and mugs, as well as flat materials.
Features a rotary tilting structure optimized for laser inner-diameter
marking, significantly expanding application versatility.

Multipurpose Detachable Clamp System
Multiple clamps can be easily attached and detached, allowing
users to select the optimal fixture based on material size and shape.

It maximizes efficiency and stability across a wide range of engrav-
ing and marking applications.

Cutting & Scribing Dual-Purpose Spindle
The head integrates a DC motor and spindle, enabling high-speed
rotation of cutting tools such as V-cutters and end mills, while also
supporting non-rotational scribing for precision marking.
A built-in Z-axis movement control mechanism within the spindle
head allows the Z-axis to be locked for cutting operations or
released for scribing, enabling quick and intuitive tool selection
based on the application.

Built-in L-Tool for Ring & Bangle Inner Engraving
A dedicated L-shaped Z tool is integrated into the head for inner
engraving of rings and bangles.
Inner-diameter engraving can be performed immediately without
changing tools, improving workflow speed and reducing setup time.

Focus Pointer System
Due to the invisible nature of laser beams, accurate focusing to a

precise point is critical for efficient marking and engraving, particu-
larly for controlled results such as black and white marking.

Two focus guide laser pointers indicate the optimal focal point, and
the Z-axis is electronically controlled to align with this position,
ensuring energy efficiency and consistent marking quality.
