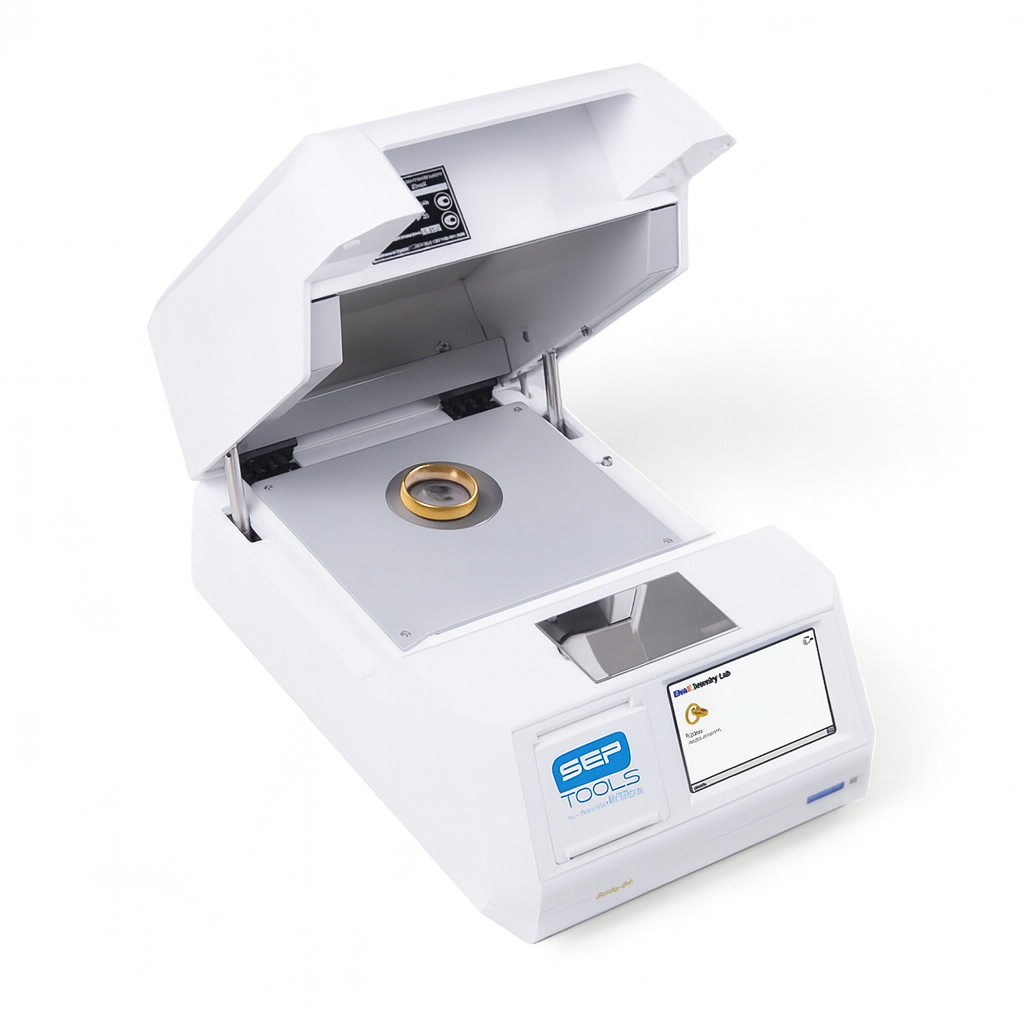

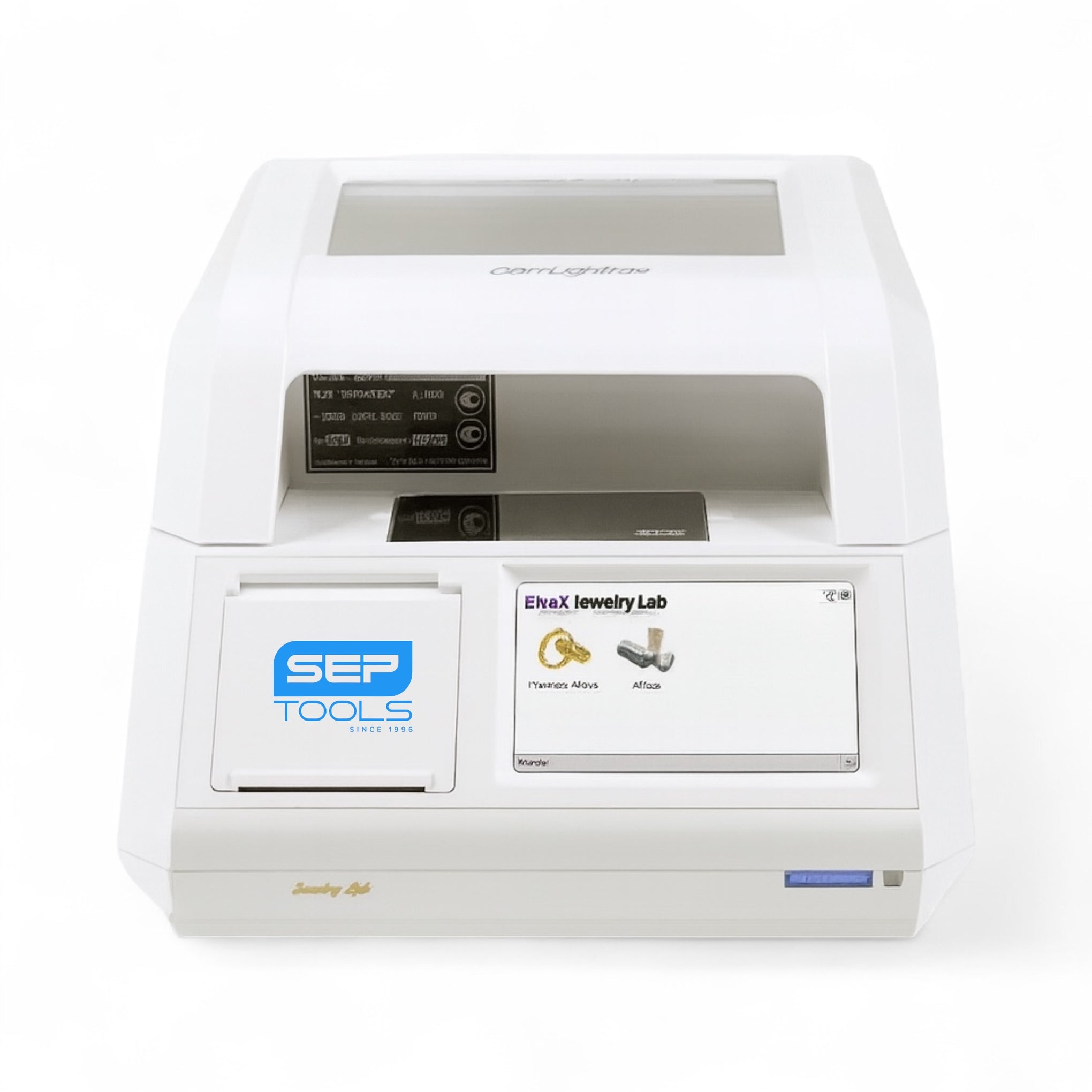

ElvaX Jewelry Lab XRF

ElvaX Jewelry Lab is aimed on high-accuracy analysis of jewelry and
precious metals. Measurement process only takes several seconds.
The result is shown in both percent share and karats. ElvaX Jewelry
Lab is also capable of detecting coatings and nonstandard alloys.

This instrument can be operated either using the embedded comput-
er with the high-resolution touchscreen display, or using a PC with

ElvaXTM software installed.

High speed and accuracy
Intuitive interface
Autonomous operation as well as connected to a PC
Coatings detection
Compact, doesn’t take much space on a desk or a counter
Leaded glass to keep analyzed items always in sight
Customer display

ACCURACY Analysis accuracy of precious metals and

jewelry is better than 0,1%

SPEED The whole measurement process takes just

several seconds.

COMPLETENESS Integrated computer, high-accuracy scales,.

The integrated CCD camera makes it
possible to target the required spot of
the sample undergoing analysis.
Automatic collimator changer allows
you to select the required measurement
spot diameter.
printer and a rechargeable Li-ion battery.

Digital X-Ray Source digiX-40
Anode: W
Voltage: 40 kV
Current: 200 uAmp
Power: 4 W
6 position collimator changer from 1 to 10mm
X-Ray Detector
Type: SDD (optional Si-PIN)
Area: 30 mm2 (6 mm2 for Si-PIN)
Energy resolution: <140 eV (<180 eV for Si-PIN) at Mn Kα
Electronics
DPP: proprietory DAS (Dynamically Adaptive Shaping) type
MCA: 4096 channels
General
Dimensions: 280 х 385 х 200 mm
Analitycal chamber: 185 x 212 x90 mm
Weight: 7 kg
Power supply: 90 – 240 V, 50/60 Hz
Power consumption: 40 W
Battery: 6 hours continuous operation
Software
Operating system: Windows EC
Analysis algorithm: Fundamental parameters (FPA)
Connectivity

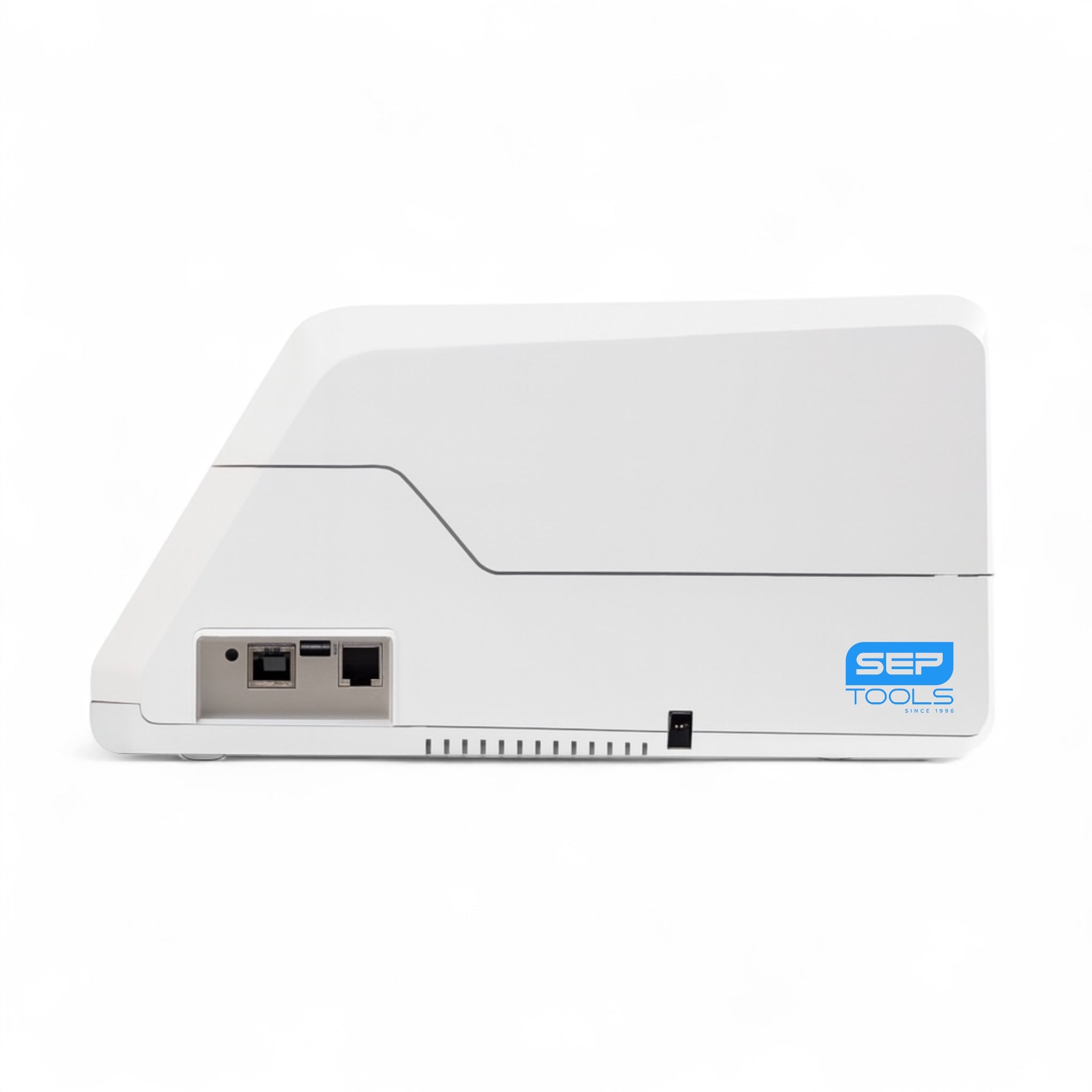

Data transfer: 2 USB ports, Micro SD, Ethernet
Data input: Keyboard and mouse can be connected for data input.
