GemOro® Superior Instruments Assay Lab Desktop XRF Gold & Precious Metal Analyzer

Item #PMX-5676

Regular price ~~$26,995.95~~ Sale price $21,999.00 Save 18%

Please Note :Payment accepted on this item

ACH
Wire or Check
Credit card payments will incur 3% credit card processing fee

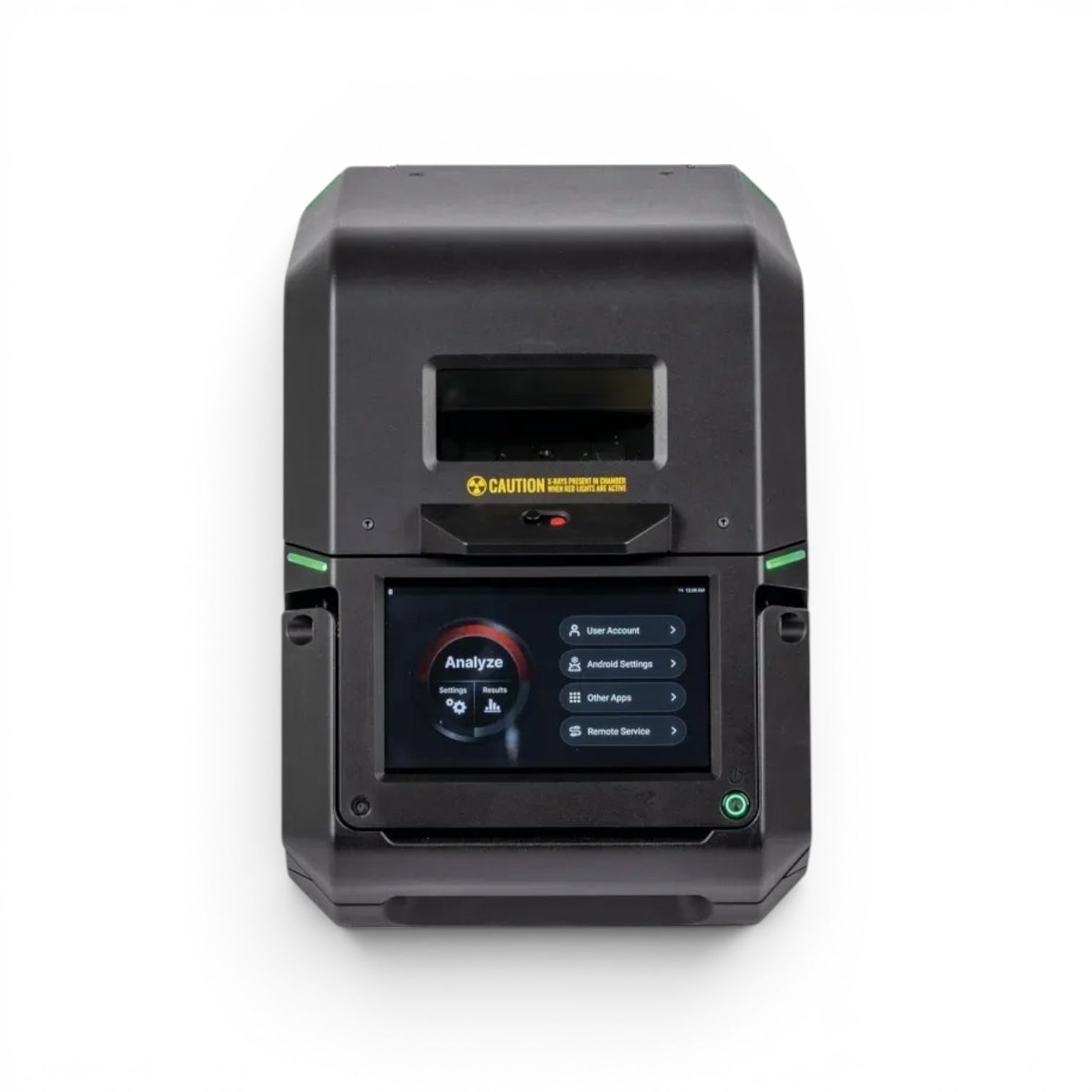

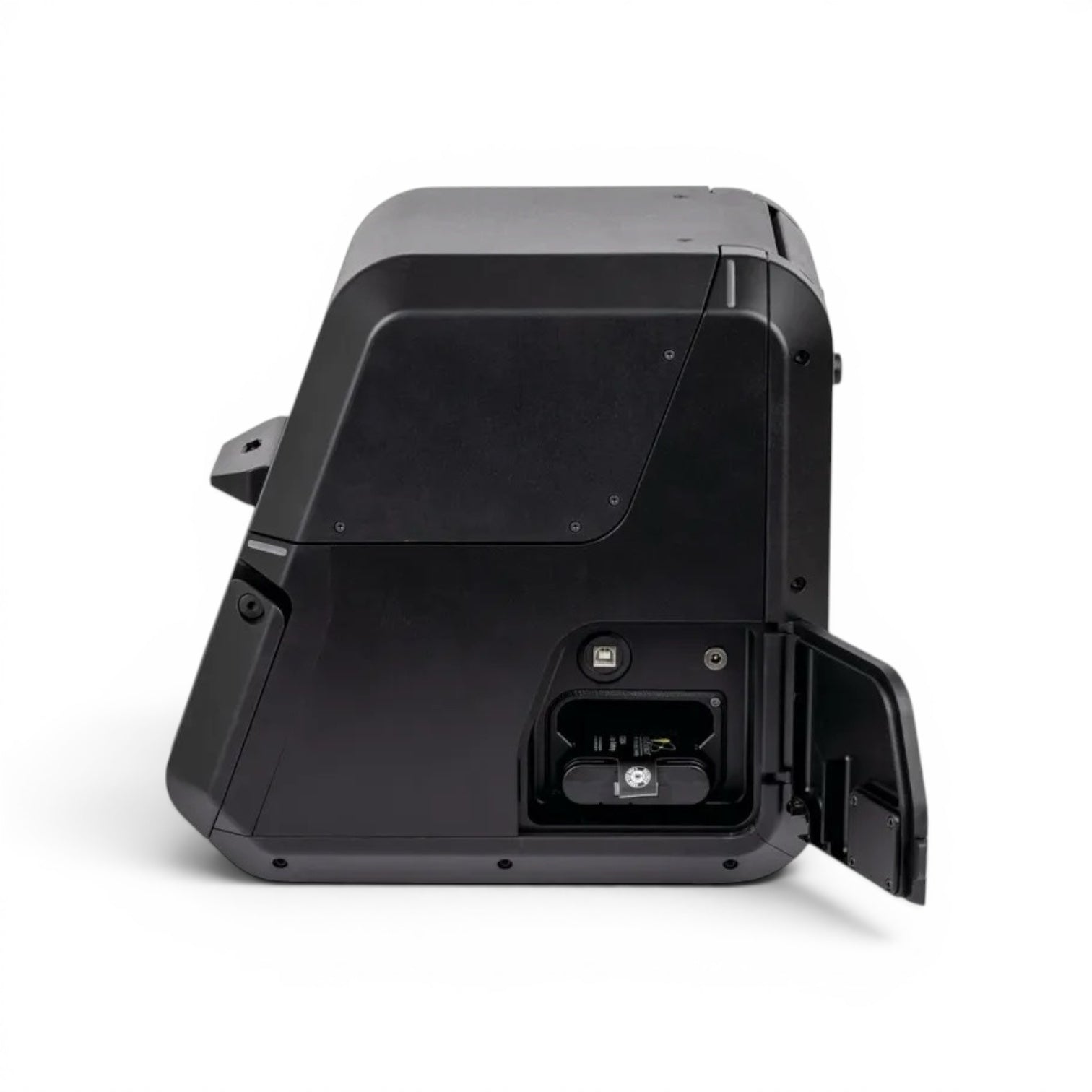

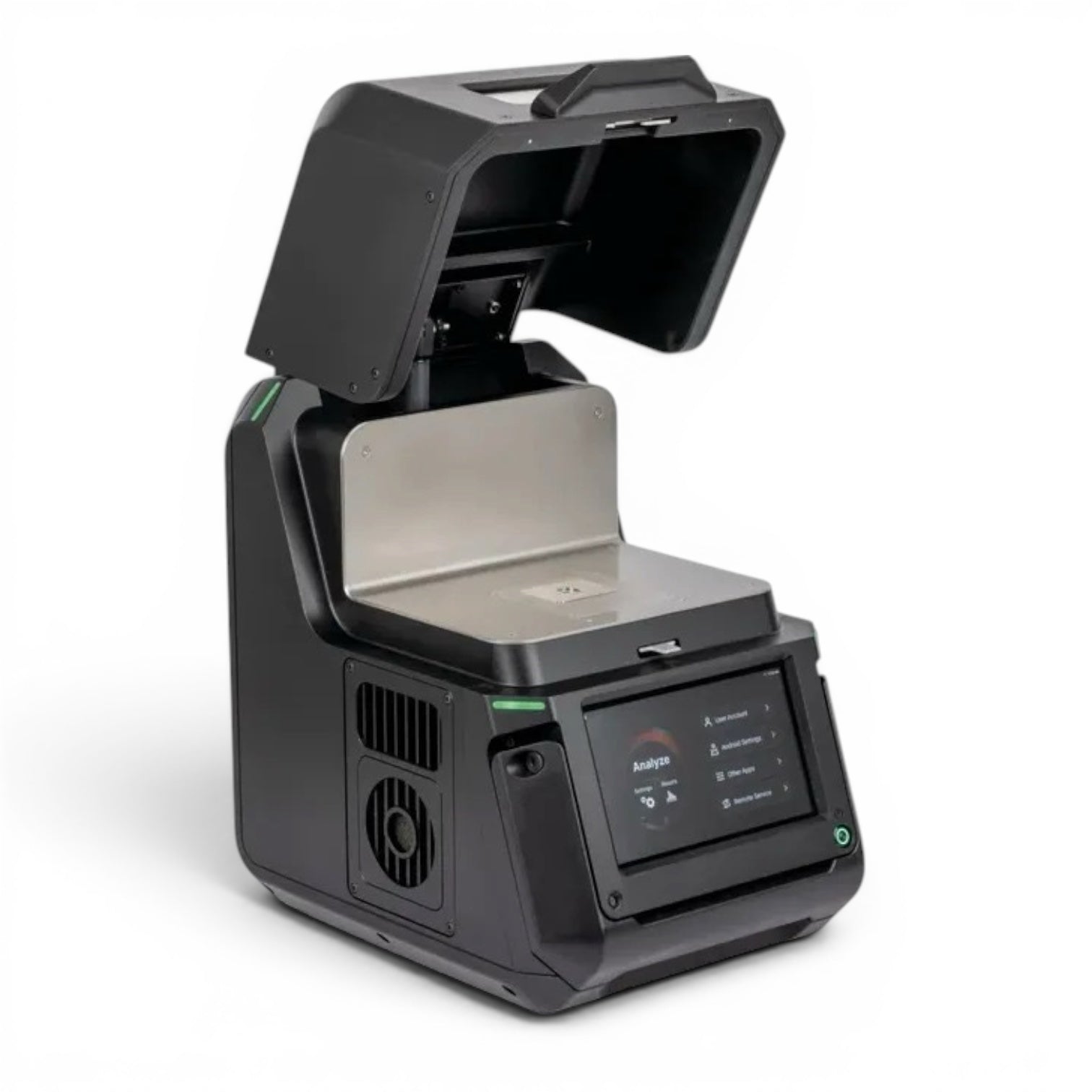

A closed-beam, desktop Energy Dispersive XRF Spectrometer designed for jewelers, appraisers, precious metal buyers, and manufacturers. Its silicon drift detector (SDD) provides fast, non-destructive analysis with surface results comparable to a fire assay without damaging the jewelry. It features a bright touchscreen, a precise 3mm testing area, and a fully enclosed chamber for zero radiation exposure. Test results can be exported onto a printable page for documentation or customer records. The GEMORO® XRF Assay Lab determines the percentage of each element, thoroughly measuring an area 3mm in diameter while reaching a robust depth of 10-20 microns. Five times the typical depth of gold plating which has a thickness of only 1-3 microns.

Brand: GemOro® Superior Instruments

Dimensions (LxWxH): 13.5" x 10" x 10"

Testing Area: 3 mm

Screen Size: 7"

Measuring Depth: Up to 10-20 Microns

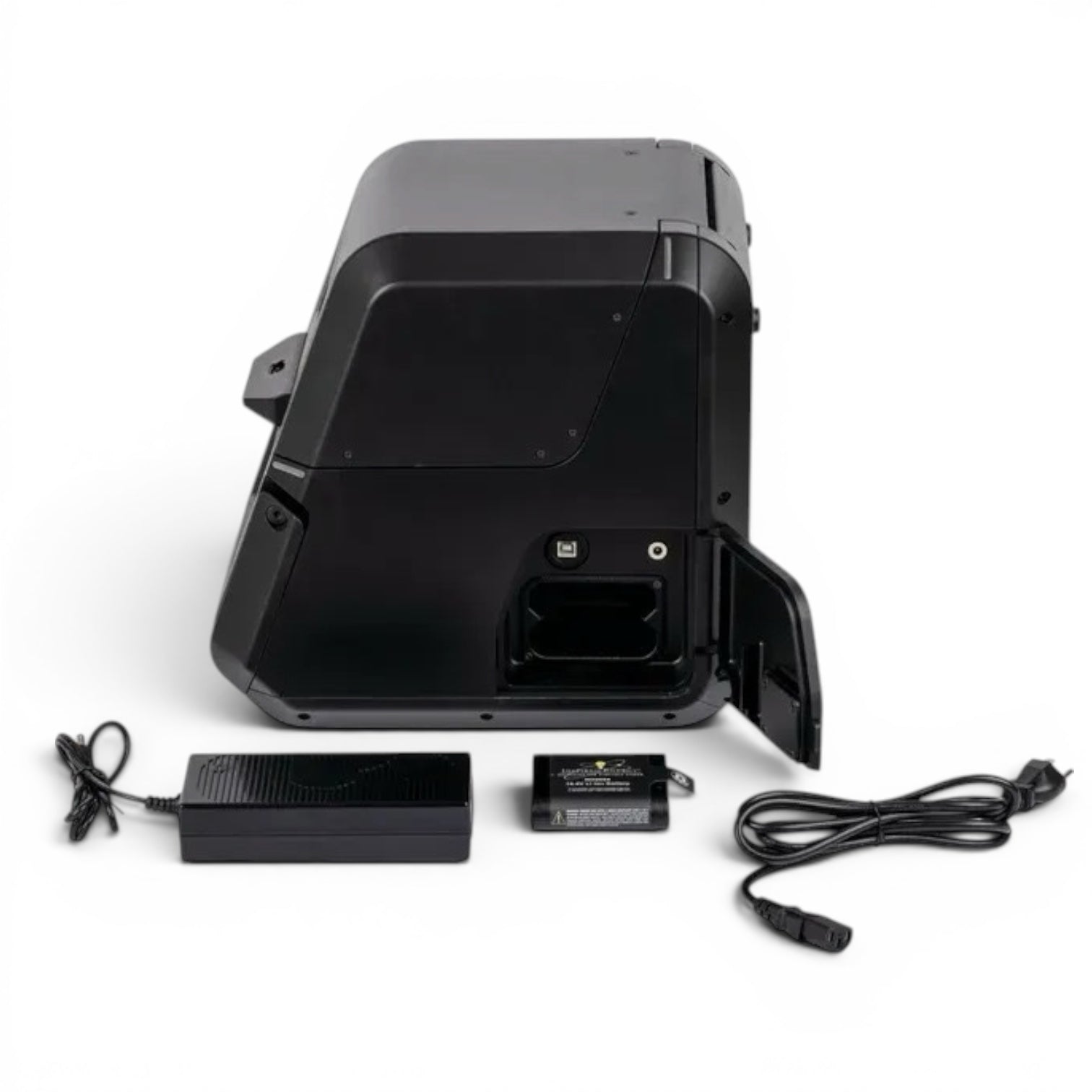

Battery Type: Li-ion 6-hour rechargeable (included)

Scan Time: 10 Seconds

Tube Life: 8,000 Hours or 2.8M 10 Second Tests (8-10 years)

Tube Specifications: 40K V, 200uA Rh Anode , 1 Beam

Detector Specifications: 7 mm, 170 eV resolution FWHM at 5.95 Mn K-alpha line

Data Transfer: WIFI, Bluetooth, USB Connectivity to Most Devices

Warranty: 3 Year Limited

Used For: Testing Gold, Platinum, Silver, Stainless Steel (including Rolex 904L) & all precious metal elements commonly found in the jewelry industry.

NOTICE: Customers are responsible for registering the GEMORO XRF Gold & Precious Metal Analyzer with their state or local radiation control agency and complying with all applicable federal, state, and local regulations. Failure to register or comply may result in legal penalties. Contact your state radiation control agency for registration requirements prior to purchase.

Non-Stock Item – Special Order
Please allow 2–3 weeks for order shipment

PLEASE NOTE: Some states require the user to register this device with your local state departments. This is required by law and is the responsibility of the user/buyer and failure to do this could result in fines/penalties.
